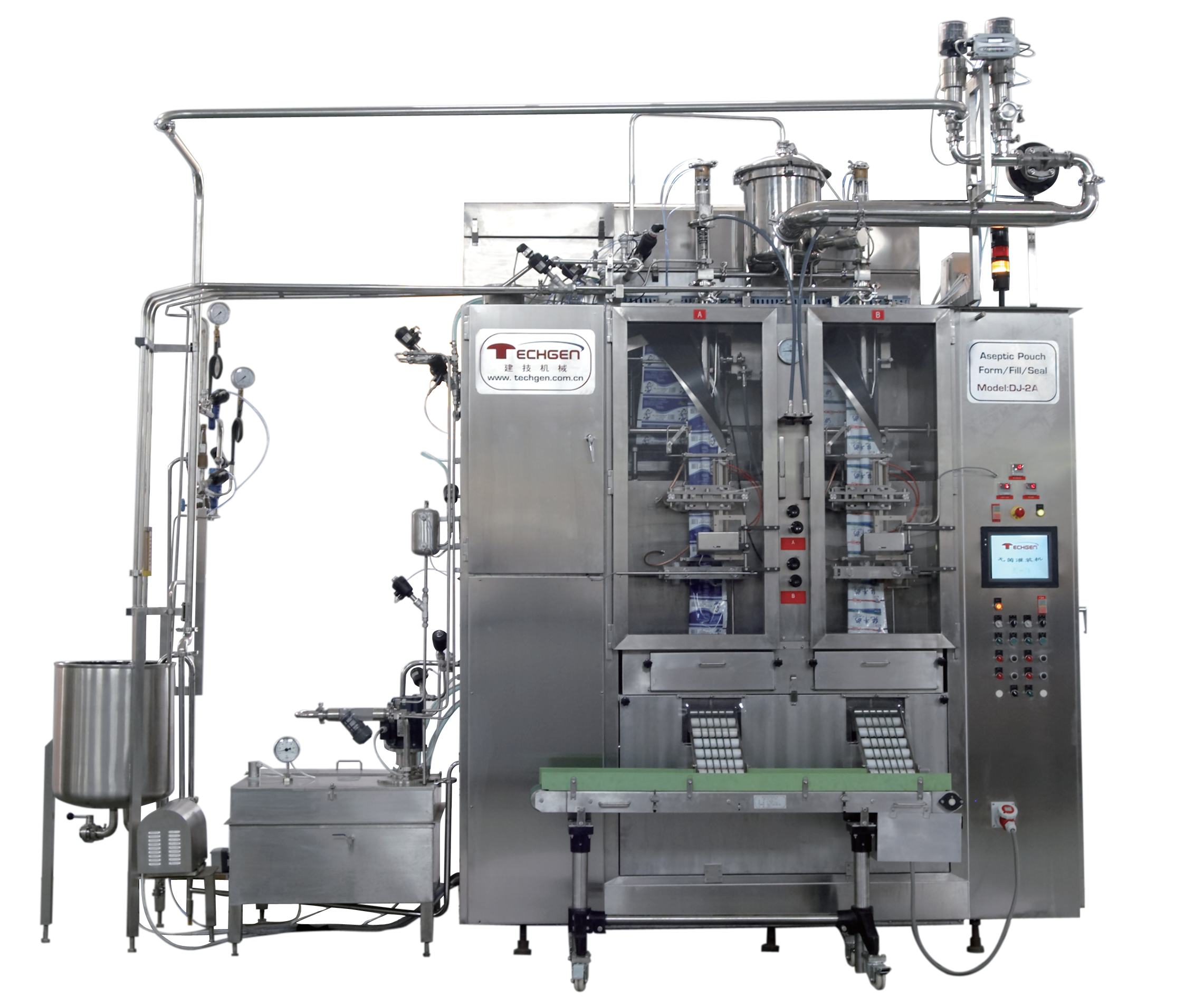

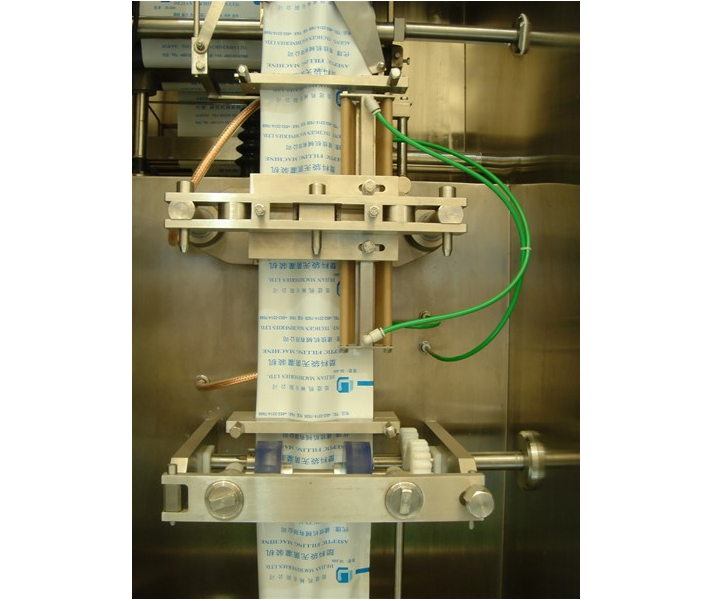

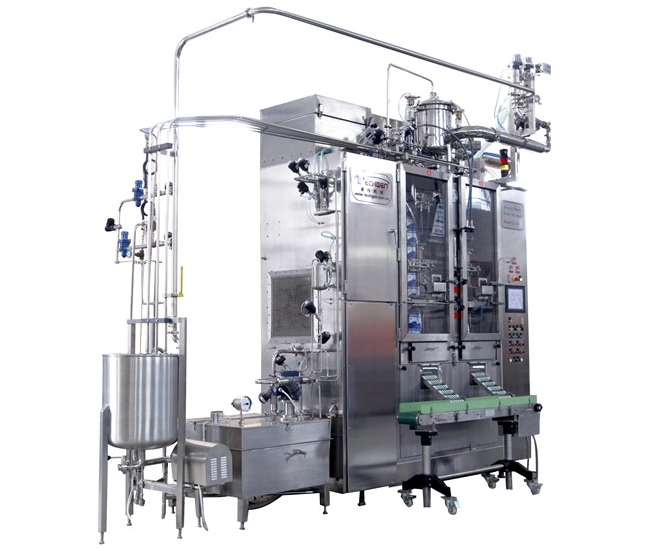

Forming of pouches from sterilized polyethylene film, filling and dosage of U.H.T milk or other particle free liquids. Hermetic sealing of the pouches and cutting of the sealed pouches.
PRODUCT:
Juice or Milk
DESIGN:

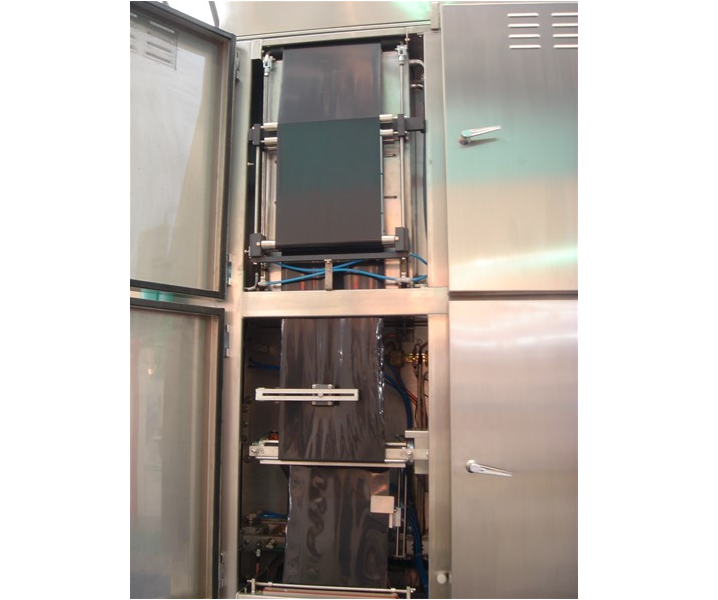

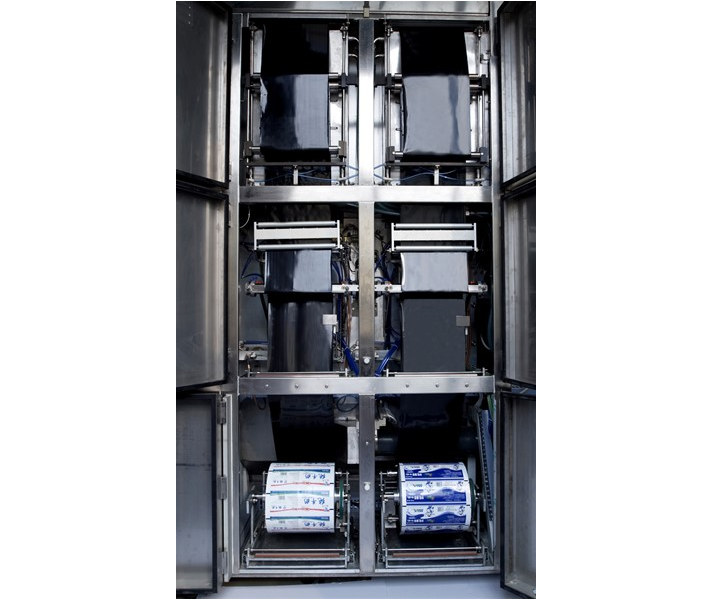

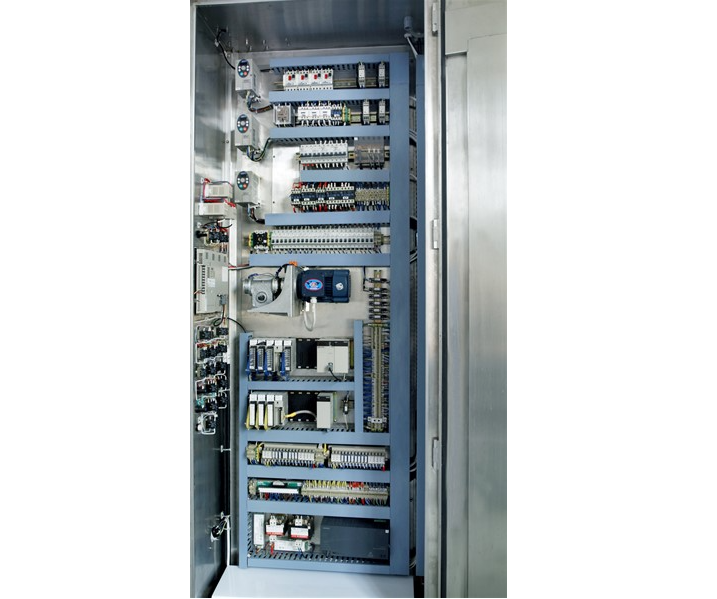

The machine is entirely automatic and electro-pneumatical. All parts in contact with milk, are of stainless steel, and are mounted on a stainless steel chassis. Plastic film sterilization is obtained by its passage in a hydrogen peroxide bath and dried by sterile air. The aseptic cabinet is sterilized through atomization of hydrogen peroxide.
VARIANTS:
DJ-1A
- Pouch Size : 200ml to 1000ml Pouch
- Filling Speed: 3000 to 3600 pouch/hr
- Variable pouch size

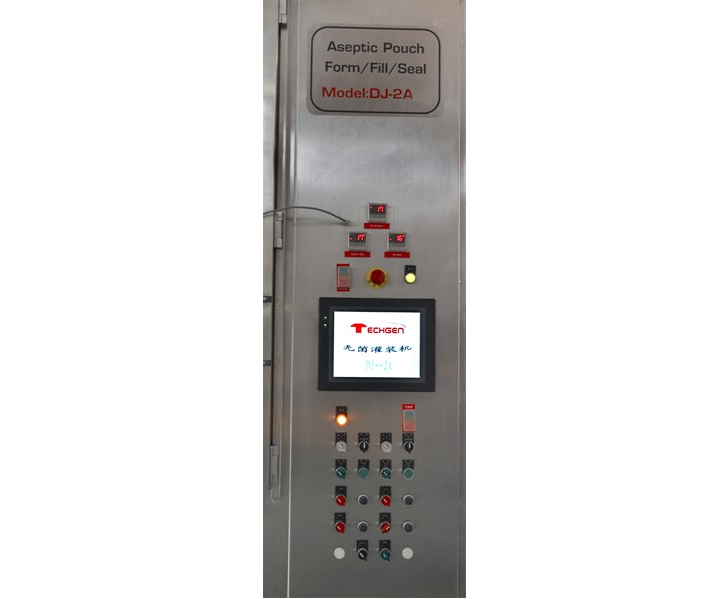

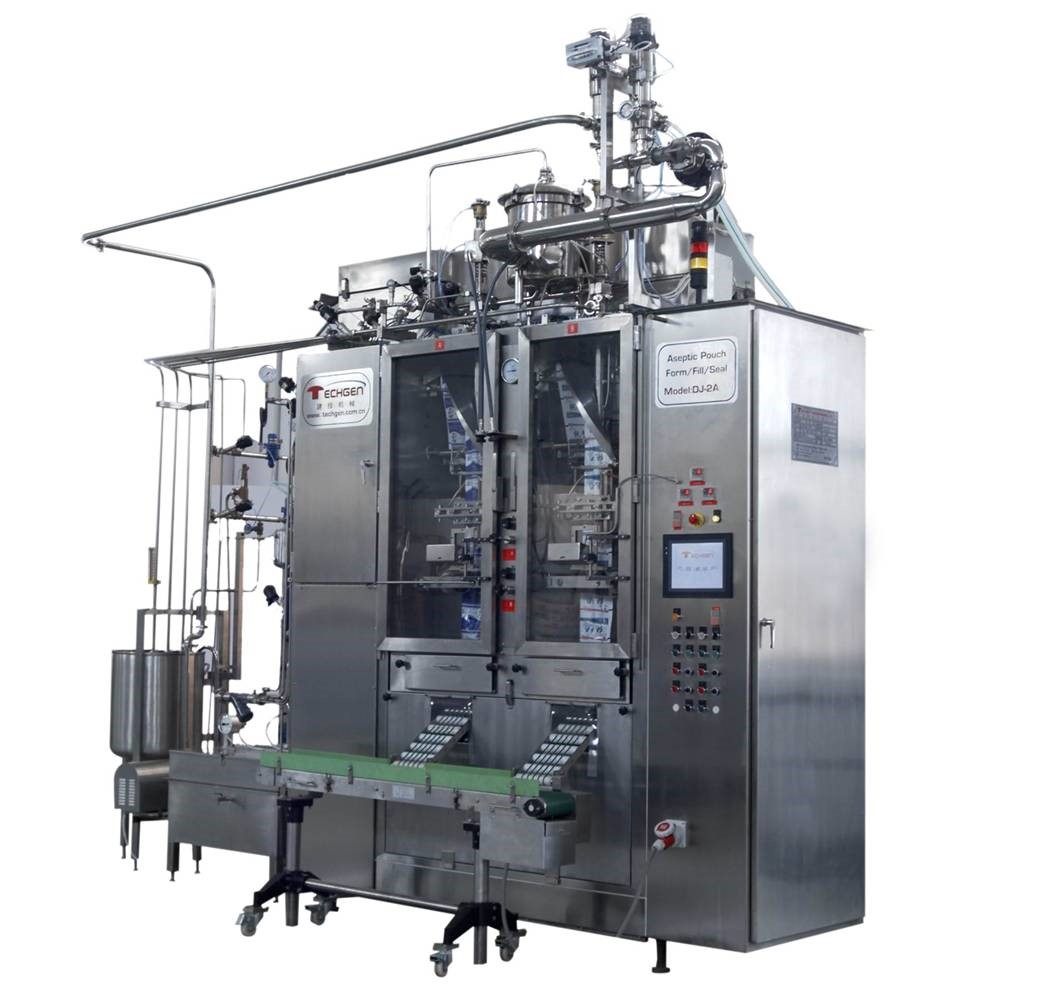

DJ-2A
- Pouch Size : 200ml to 1000ml Pouch
- Filling Speed: 6000 to 7200 pouch/hr
- Variable pouch size
DJ-2A-NII
- Pouch Size : 200ml to 1000ml Pouch
- Filling Speed: 8500 to 9000 pouch/hr
- Variable pouch size
